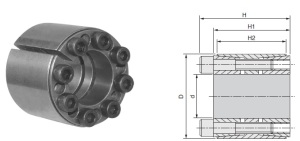

Baureihe KLEE
– selbstzentrierend
– für sehr hohe Drehmomente
Typ | Drehmoment | ||||||
d | D | H1 | H | H2 | Mt (Nm) | Ta (KN) | |
KLEE025 | 25 | 55 | 40 | 46 | 32 | 799 | 64 |
KLEE028 | 28 | 55 | 40 | 46 | 32 | 895 | 64 |
KLEE030 | 30 | 55 | 40 | 46 | 32 | 959 | 64 |
KLEE035 | 35 | 60 | 54 | 60 | 44 | 1306 | 75 |
KLEE038 | 38 | 75 | 54 | 62 | 44 | 2567 | 135 |
KLEE040 | 40 | 75 | 54 | 62 | 44 | 2702 | 135 |
KLEE042 | 42 | 75 | 54 | 62 | 44 | 2837 | 135 |
KLEE045 | 45 | 75 | 54 | 62 | 44 | 3040 | 135 |
KLEE048 | 48 | 80 | 54 | 62 | 44 | 3707 | 154 |
KLEE050 | 50 | 80 | 64 | 72 | 56 | 3861 | 154 |
KLEE055 | 55 | 85 | 64 | 72 | 56 | 4779 | 174 |
KLEE060 | 60 | 90 | 64 | 72 | 56 | 5793 | 193 |
KLEE065 | 65 | 95 | 64 | 72 | 56 | 6276 | 193 |
KLEE070 | 70 | 110 | 78 | 88 | 70 | 10951 | 313 |
KLEE075 | 75 | 115 | 78 | 88 | 70 | 11733 | 313 |
KLEE080 | 80 | 120 | 78 | 88 | 70 | 13768 | 344 |
KLEE085 | 85 | 125 | 78 | 88 | 70 | 15959 | 376 |
KLEE090 | 90 | 130 | 78 | 88 | 70 | 16898 | 376 |
KLEE095 | 95 | 135 | 78 | 88 | 70 | 17837 | 376 |
KLEE100 | 100 | 145 | 100 | 112 | 90 | 25029 | 501 |
KLEE110 | 110 | 155 | 100 | 112 | 90 | 30039 | 546 |
KLEE120 | 120 | 165 | 100 | 112 | 90 | 38226 | 637 |
KLEE130 | 130 | 180 | 116 | 130 | 104 | 48270 | 743 |
KLEE140 | 140 | 190 | 116 | 130 | 104 | 60654 | 866 |
KLEE150 | 150 | 200 | 116 | 130 | 104 | 69628 | 928 |
KLEE160 | 160 | 210 | 116 | 130 | 104 | 79220 | 990 |
KLEE170 | 170 | 225 | 148 | 164 | 134 | 100851 | 1186 |
KLEE180 | 180 | 235 | 148 | 164 | 134 | 114414 | 1271 |
KLEE190 | 190 | 250 | 148 | 164 | 134 | 128814 | 1356 |
KLEE200 | 200 | 260 | 148 | 164 | 134 | 135594 | 1356 |
KLEE220 | 220 | 285 | 148 | 164 | 134 | 167805 | 1526 |
